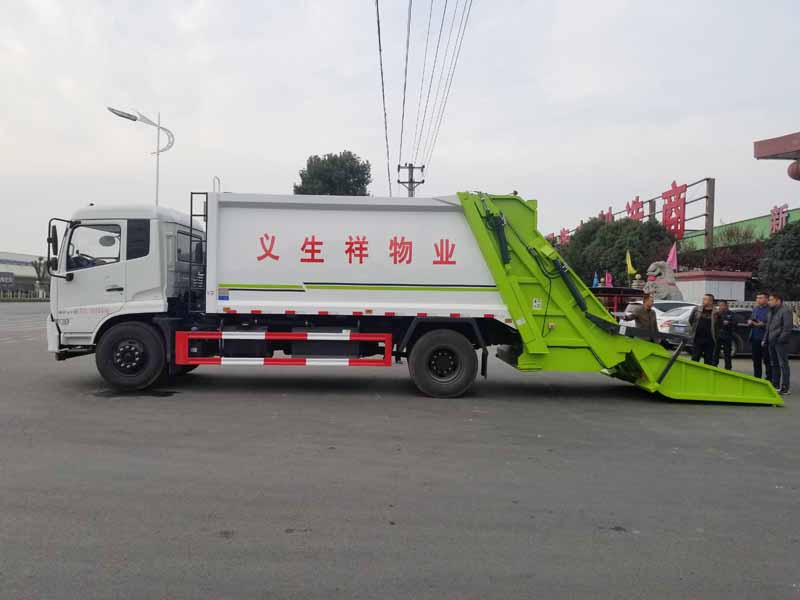

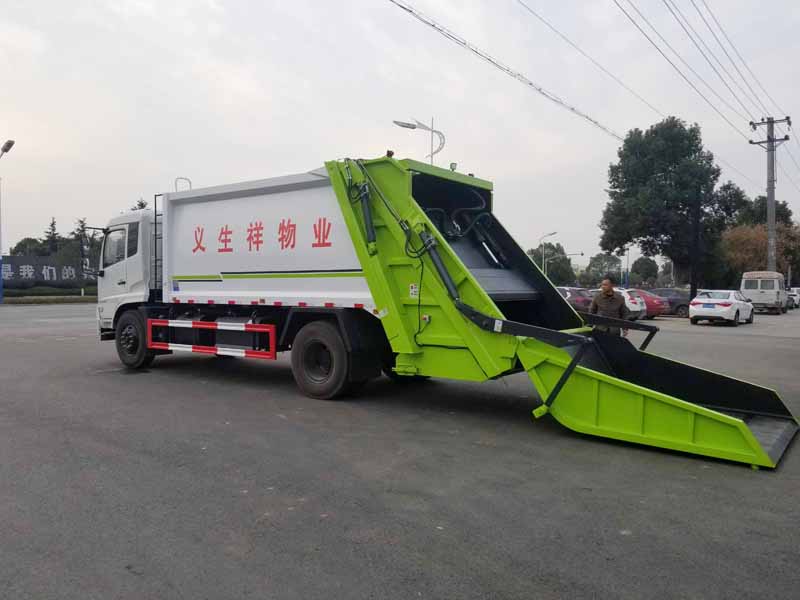

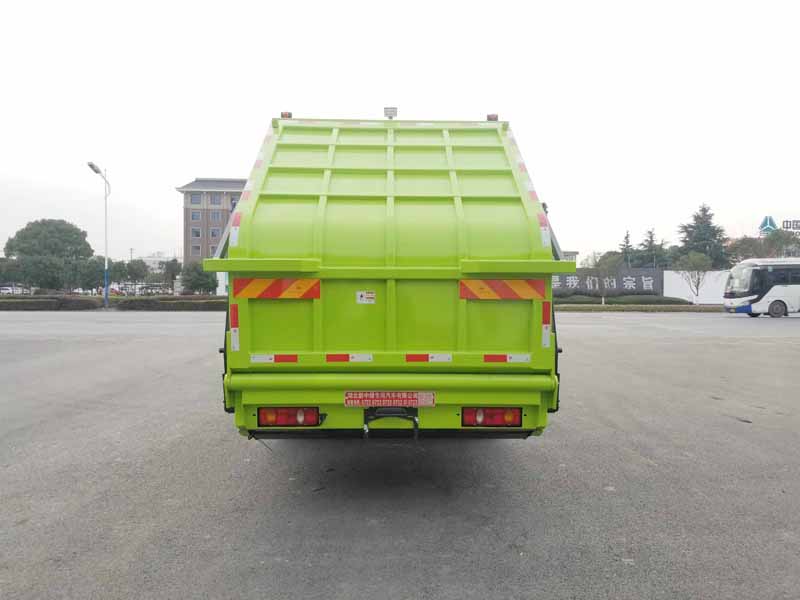

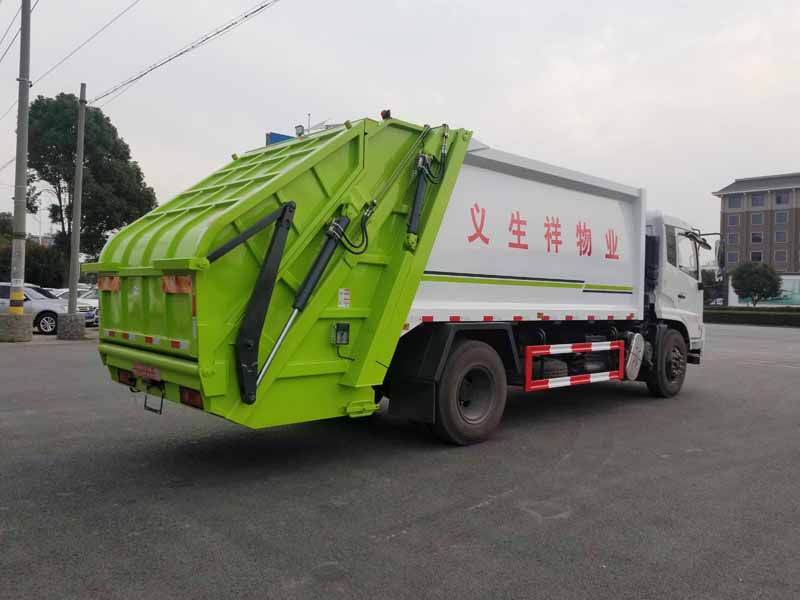

zhong jie XZL5182ZYS6 Compression type garbage truck
| zhong jie XZL5182ZYS6 Compression type garbage truck Main Technical specifications | |||
| Product name | Compression type garbage truck | Enterprise name | Hubei xinzhonglv Special Purpose Vehicle Co., Ltd |
| Vehicle model | XZL5182ZYS6 | Notice Lot | 327 |
| Dimensions(mm) | 8150,8700,8900,8250,8800,9000,8500,9050,9250,8550,9100,9300×2500,2550×3250 (mm) | Volume of tank(m3) | |
| Total mass(kg) | 18000 | Rated mass (kg) | 7005,7505 |
| chassis kerb mass(Kg) | 10800,10300 | Front passenger | 3 |
| axial?load(Kg) | 6500/11500 | Exemption | |
| Top speed(km/h) | 89 | fuel | |
| oil consumption(L/100Km) | environment protection | ||
| Fuel type | Diesel fuel | Emission standard | State VI |
| zhong jie XZL5182ZYS6 Compression type garbage truck Chassis parameters | |||
| chassis models | DFH1180EX8 | Chassis brand | Dongfeng |
| controlled axis | 2 | front track(mm) | 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860 |
| wheel base(mm) | 3800,3950,4200,4500,4700,5000,5300,5800,5600 | Rear track(mm) | 1820,1860,1800 |
| Wheel number: | 6 | Tire type | 10.00R20 18PR,275/80R22.5 18PR |
| Approach departure angle | 17/24,17/18,17/13,19/20 | Front suspension rear suspension | 1400/1890,1400/2190,1400/2390,1430/1860,1430/2160,1430/2360,1430/1890,1400/1920,1400/2390,1430/2640,1400/2435,1455/2385 |
| zhong jie XZL5182ZYS6 Compression type garbage truck Engine parameters | |||
| Engine model: | engine production enterprises | displacement(ml) | Power(Kw)/horsepower (PS): |
| D4.5NS6B190 | Dongfeng Cummins Engine Co., Ltd | 4500 | 140 |
| D6.7NS6B230 | Dongfeng Cummins Engine Co., Ltd | 6700 | 169 |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd | 6200 | 154 |
| D4.0NS6B185 | Dongfeng Cummins Engine Co., Ltd | 4000 | 136 |
| DDi50E220-60 | Dongfeng Commercial Vehicle Co., Ltd | 5000 | 162 |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd | 6200 | 169 |
| DDi50E190-60 | Dongfeng Commercial Vehicle Co., Ltd | 5000 | 147 |
| D4.0NS6B195 | Dongfeng Cummins Engine Co., Ltd | 4000 | 143 |
| Special function description |
| 該車型主要用于各類垃圾清理及運輸,主要裝置為壓縮廂體及填充器.選裝廂體結構,選裝全密封蓋,選裝填充器側部及后部翻轉機構結構.選裝廂體結構及選裝全密封蓋及選裝填充器側部及后部翻轉機構結構時引起整備質量parameter的變化在3%范圍內.后部翻轉機構為無翻轉式,wheel base(mm)/前懸(mm)/后伸(mm)/外形長(mm)對應關系為:3950/1400(1430)/1300(1270)/8150,4500/1400(1430)/1300(1270)/8700,4700/1400(1430)/1300(1270)/8900.后部翻轉機構為擺臂式,wheel base(mm)/前懸(mm)/后伸(mm)/外形長(mm)對應關系為:3950/1400(1430)/1400(1370)/8250,4500/1400(1430)/1400(1370)/8800,4700/1400(1430)/1400(1370)/9000.后部翻轉機構為掛筒式,wheel base(mm)/前懸(mm)/后伸(mm)/外形長(mm)對應關系為:3950/1400(1430)/1650(1620)/8500,4500/1400(1430)/1650(1620)/9050,4700/1400(1430)/1650(1620)/9250.后部翻轉機構為帶斗式,wheel base(mm)/前懸(mm)/后伸(mm)/外形長(mm)對應關系為:3950/1400(1430)/1700(1670)/8550,4500/1400(1430)/1700(1670)/9100,4700/1400(1430)/1700(1670)/9300(mm).側防護材料為Q235,連接方式為連接支架固焊在副車架大梁上.因后部結構需要無法安裝,后防護專用裝置代替,只測離地高為450(mm).隨底盤選裝高度不同的駕駛室;選裝前霧燈;選裝駕駛室頂部裝飾燈;選裝駕駛室前面罩;選裝前保險杠及前部燈具,選裝后視鏡;選裝駕駛室輪罩;駕駛室前臉擾流罩為選裝件;裝有具有衛星定位的行車記錄儀.ABSmodel:3631010-C2000,4460046450;Manufacturer:東科克諾爾商用車制動系統(十堰)有限公司,威伯科汽車控制系統(中國)有限公司.發動機(油耗值)對應關系:D4.5NS6B190(24.4);D6.7NS6B230(23.7);DDi50E190-60(23.9);B6.2NS6B210(23.8);B6.2NS6B230(23.8).僅采用3950(mm),4500(mm),4700(mm)軸距底盤.選裝高度不同的駕駛室;選裝前霧燈;選裝駕駛室頂部裝飾燈;選裝駕駛室前面罩;選裝前保險杠及前部燈具,選裝后視鏡;選裝后部燈具;駕駛室前臉擾流罩為選裝件;駕駛室臥鋪側窗選裝裝飾板. |
