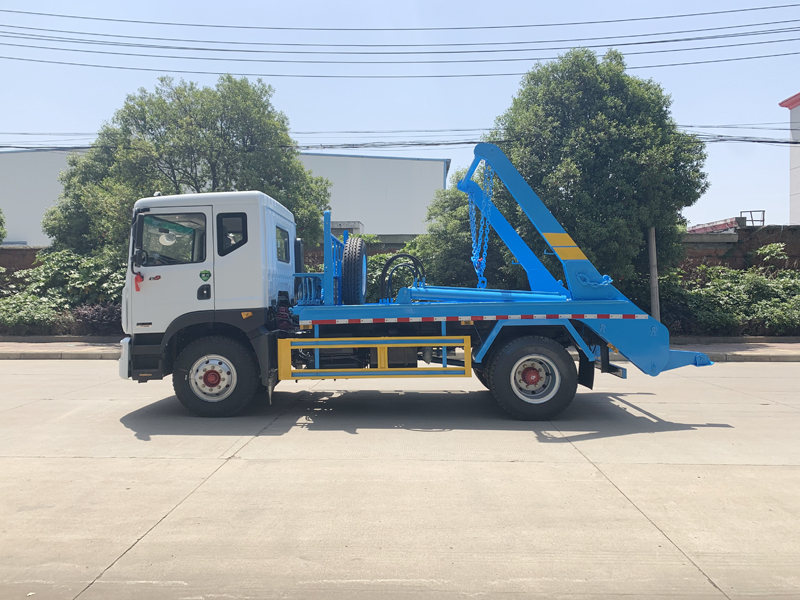

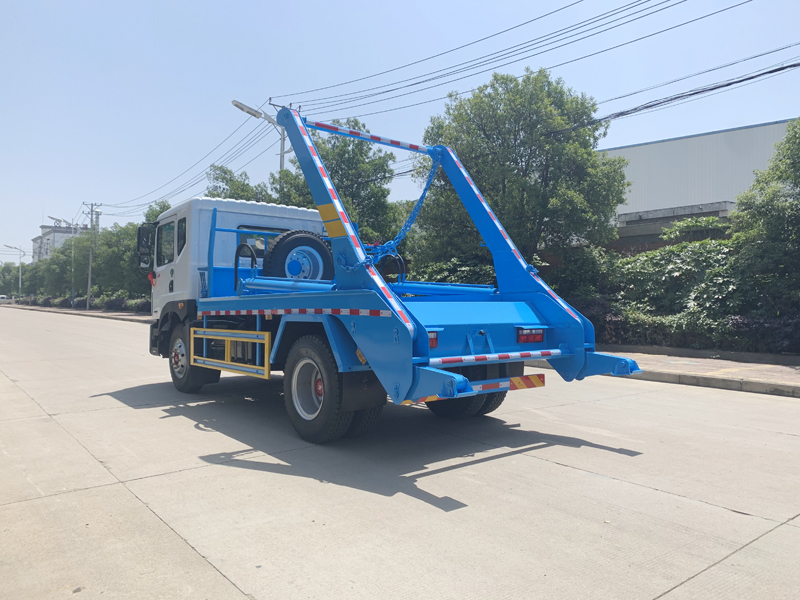

XZL5180ZBS6 Swing arm garbage truck
| |||
Product trademark | zhong jie | Notice Lot | 331 |
Product name |
| Roduct number | APLGK6FT028 |
Total mass(Kg) | 18000 | Volume of tank(m3) | |
Rated loading capacity(Kg) | 11150,10955 | Dimensions(mm) | 7350×2490×3350,3150 |
Chassis kerb mass(Kg) | 6655,6850 | Container size(mm) | ×× |
Passenger carrying capacity | Total mass of quasi Trailer(Kg) | ||
Passengers | 3 | Utilization factor of payload | |
Approach/departure angle(°) | 19/12 | Before hanging / rear overhang(mm) | 1260/2140 |
Controlled axis | 2 | Wheel base(mm) | 3950 |
Axial load(Kg) | 6500/11500 | Maximum speed(Km/h) | 105 |
Other | 1,This model is mainly used for garbage cleaning of various supporting swing arm boxes, 2,And the main device is swing arm mechanism 3,Original air conditioner, steel tire, ABS | ||
Swing arm garbage truck chassis technical data | |||
Chassis models | EQ1185LJ9CDE | Chassis category | Truck chassis (class II) |
Brand name | Dongfeng | Manufacturer | Dongfeng Motor Co., Ltd |
Dimensions(mm) | Wheel number | 6 | |
Approach/departure angle(°) | 19/13,19/17 | Tire type | 10.00R20 |
Number of Leaf Springs | 8/10+7,8/- | Front track(mm) | 1862,1933,1949 |
Types of fuel | Diesel fuel | Rear track(mm) | 1806,1865 |
Emission standard | GB3847-2005,GB17691-2018State VI | ||
Engine model | Engine production enterprises | Displacement(ml) | Power(Kw) |
D4.0NS6B195 YCS04200-68 | Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Group Co., Ltd | 4000 4156 | 143 147 |
1,Since?the?loading?and?unloading?system?for?loading?along?the?telescopic?arm,?hydraulic?drive, ?hydraulic?system?pressure?is?32MPa.?
2,The?use?of?hydraulic?control?proportional?control?(cab)?and?direct?manipulation?(outside?the?cab)?two?kinds?of?control?methods.?
3,Self-handling?system?installed?by?the?subframe?on?the?car?chassis?beam.?
4,Since?the?handling?system?can? be?reversed?with?a?scalable?two?boxes?"L"?shape,?and?telescopic?boom?lift?cylinders?and?telescopic?cylinders,?the?rear?frame?above?the?cylinder,?Vice?beam?with?a?stable,?to?improve?the?whole?vehicle?longitudinal?stability.
