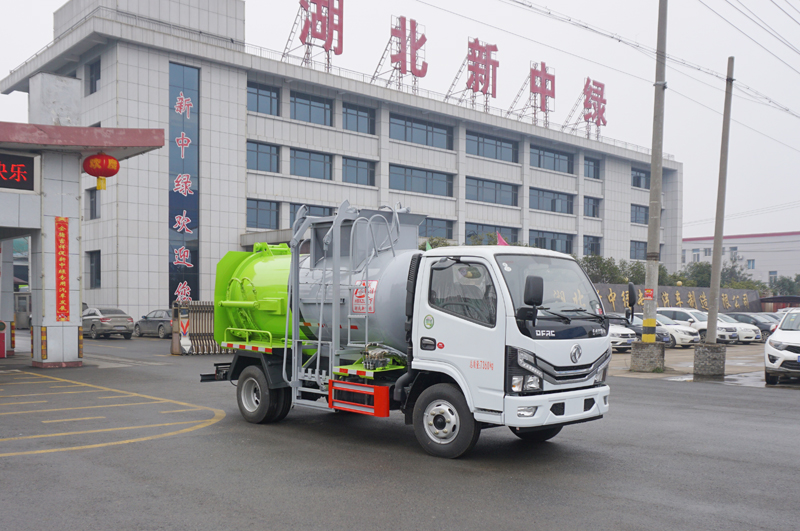

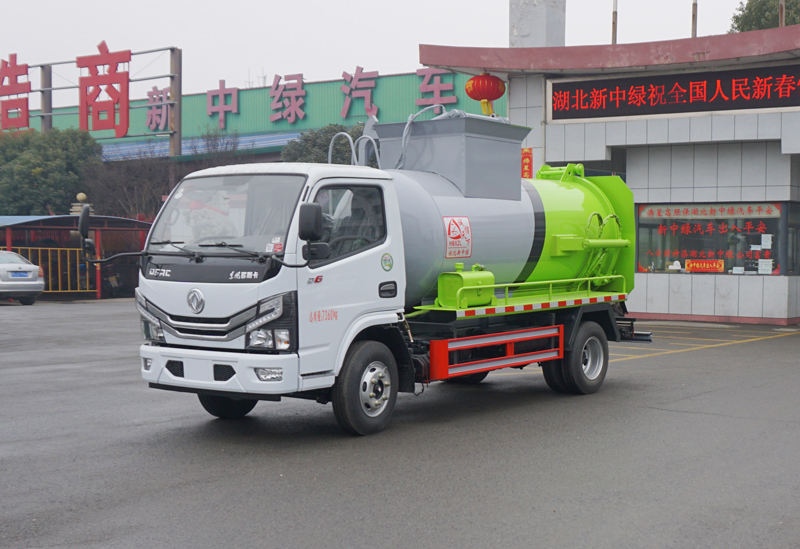

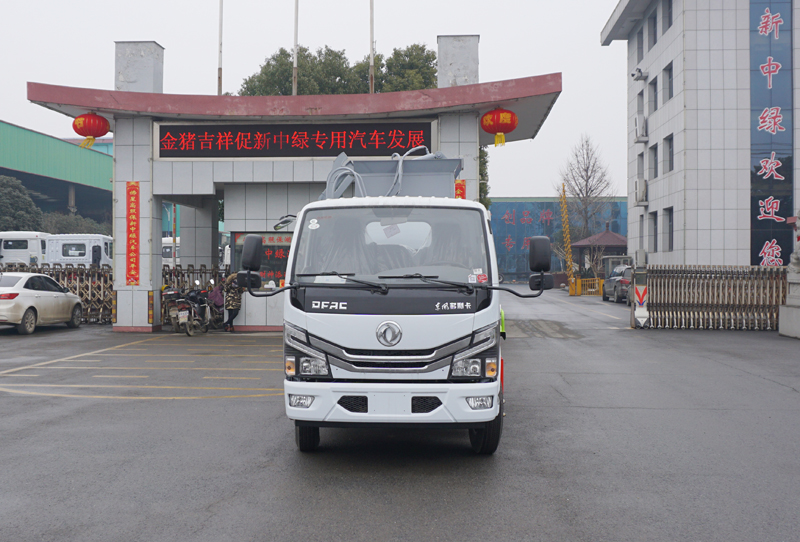

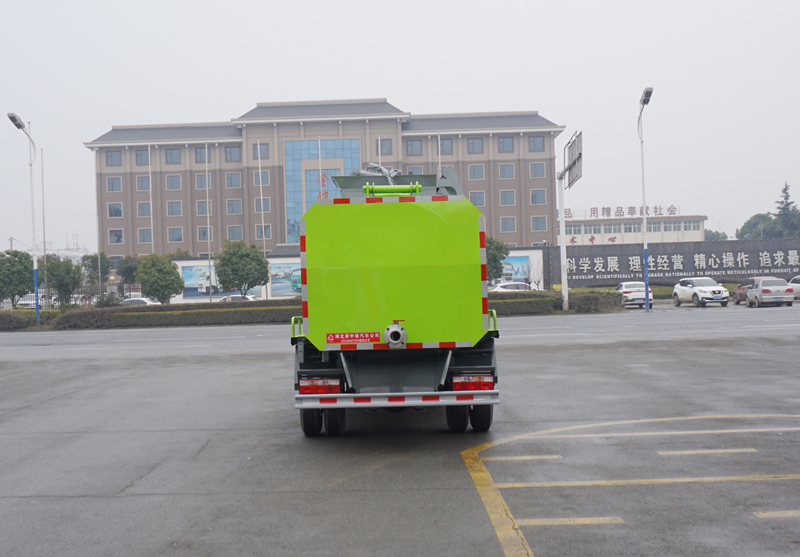

zhong jie XZL5070TCA6型餐廚垃圾車
| zhong jie XZL5070TCA6型餐廚垃圾車Main Technical specifications | |||
| Product name | 餐廚垃圾車 | Enterprise name | Hubei xinzhonglv Special Purpose Vehicle Co., Ltd |
| Vehicle model | XZL5070TCA6 | Notice Lot | 330 |
| Dimensions(mm) | 5245,5495,5850×2030×2850 (mm) | Volume of tank(m3) | |
| Total mass(kg) | 7360 | Rated mass (kg) | 2880 |
| chassis kerb mass(Kg) | 4350 | Front passenger | 2 |
| axial?load(Kg) | 2640/4720 | Exemption | |
| Top speed(km/h) | 110 | fuel | |
| oil consumption(L/100Km) | environment protection | ||
| Fuel type | Diesel fuel | Emission standard | State VI |
| zhong jie XZL5070TCA6型餐廚垃圾車Chassis parameters | |||
| chassis models | EQ1075SJ3CDF | Chassis brand | Dongfeng |
| controlled axis | 2 | front track(mm) | 1525,1519,1503,1613 |
| wheel base(mm) | 2700,2950,3308 | Rear track(mm) | 1498,1516,1586,1670,1650 |
| Wheel number: | 6 | Tire type | 7.00R16,7.00R16LT,7.00R16LT 14PR |
| Approach departure angle | 27.7/15 | Front suspension rear suspension | 1055/1345,1055/1430,1055/1507,1055/1576,1040/1497 |
| zhong jie XZL5070TCA6型餐廚垃圾車Engine parameters | |||
| Engine model: | engine production enterprises | displacement(ml) | Power(Kw)/horsepower (PS): |
| CY4BK461 | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 3707 | 95 |
| CA4DB1-11E6 | China FAW Group Corporation | 2207 | 81 |
| CY4BK161 | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 3856 | 105 |
| D20TCIF1 | KUNMING YUNNEI POWER CO.,LTD. | 1999 | 93 |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 2800 | 96 |
| H20-120E60 | Anhui Quanchai Power Co., Ltd. | 2000 | 90 |
| CA4DB1-13E6 | China FAW Group Corporation | 2207 | 95 |
| YCY24140-60 | Guangxi Yuchai Machinery Group Co., Ltd | 2360 | 103 |
| D20TCIF11 | KUNMING YUNNEI POWER CO.,LTD. | 1999 | 93 |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 85 |
| ZD30D16-6N | DONGFENG LIGHT ENGINE CO.,LTD. | 2953 | 120 |
| M9T-600 | DONGFENG LIGHT ENGINE CO.,LTD. | 2298 | 105 |
| Special function description |
| 車輛裝有側裝垃圾桶升降裝置,封閉式垃圾罐等裝置,用于餐廚垃圾收集,轉運及卸料作業..整車長/后懸/軸距對應關系為(mm):5245/1490/2700,5495/1490/2950,5850/1487/3308.側防護材料為Q235,連接方式為連接支架固焊在副車架大梁上.后防護材料為Q235,連接方式:用結構連接件固焊在主車后端,后部防護裝置斷面尺寸(寬×高)60×120(mm),后部防護離地高度:430(mm).選裝前面罩,前保險杠,前組合燈具.選裝側部及后部結構.ABSmodel/廠家:ABS/ASR-12V-4S/4M/襄陽東風隆誠機械有限責任公司. |
